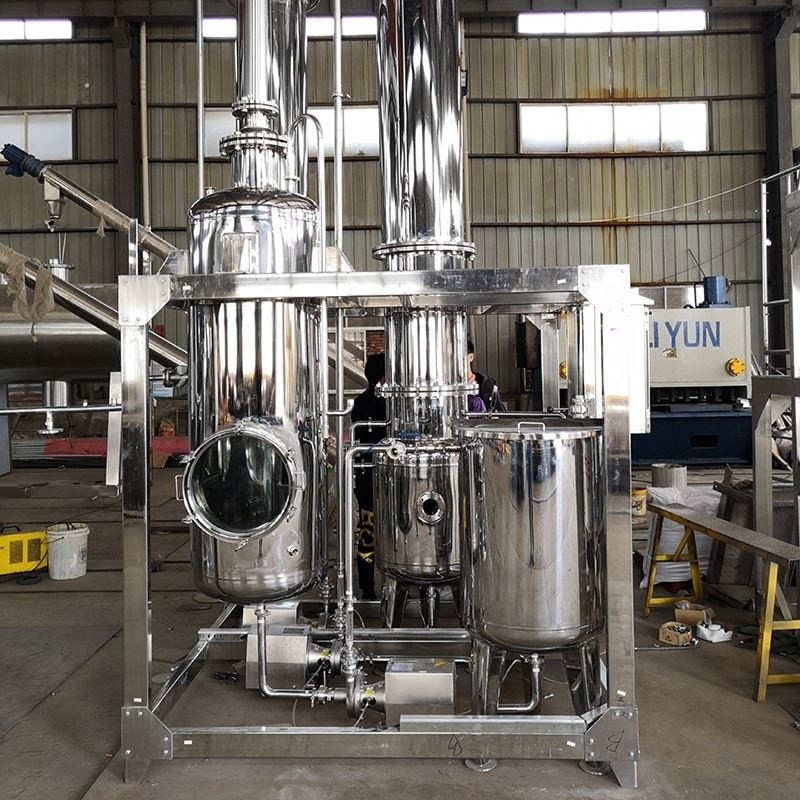

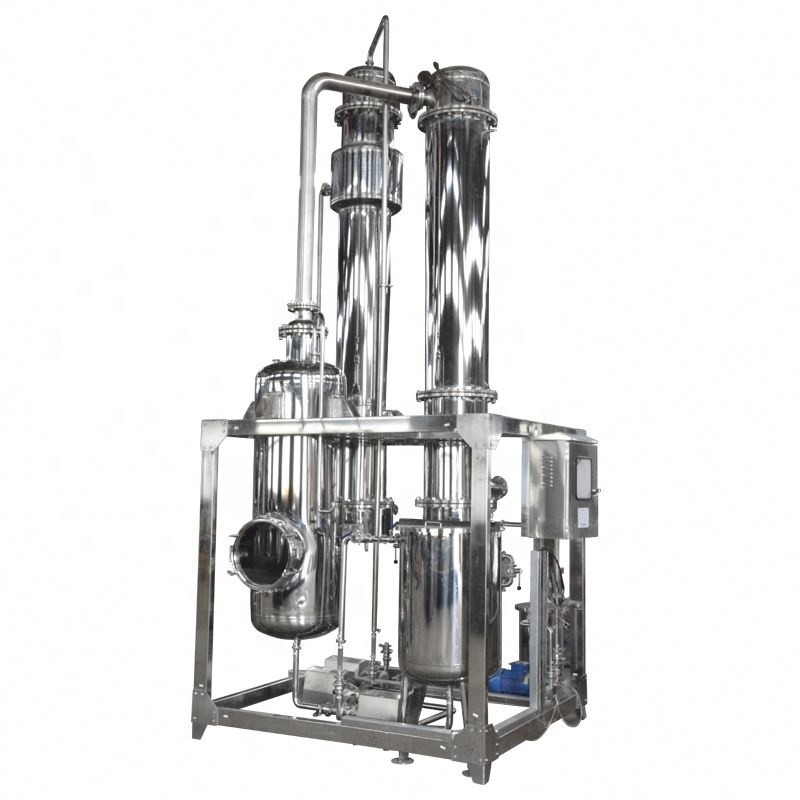

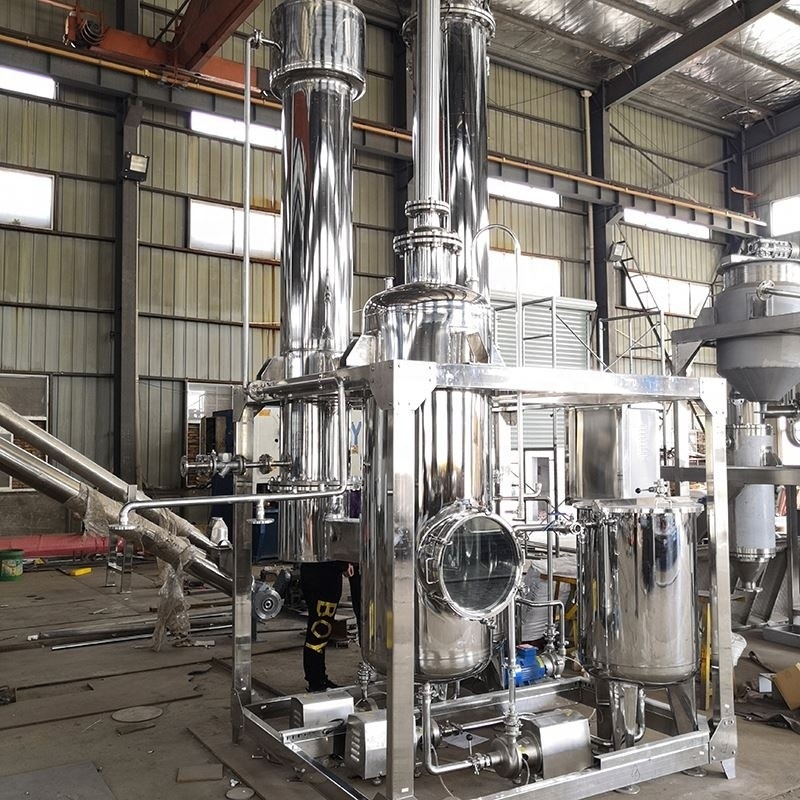

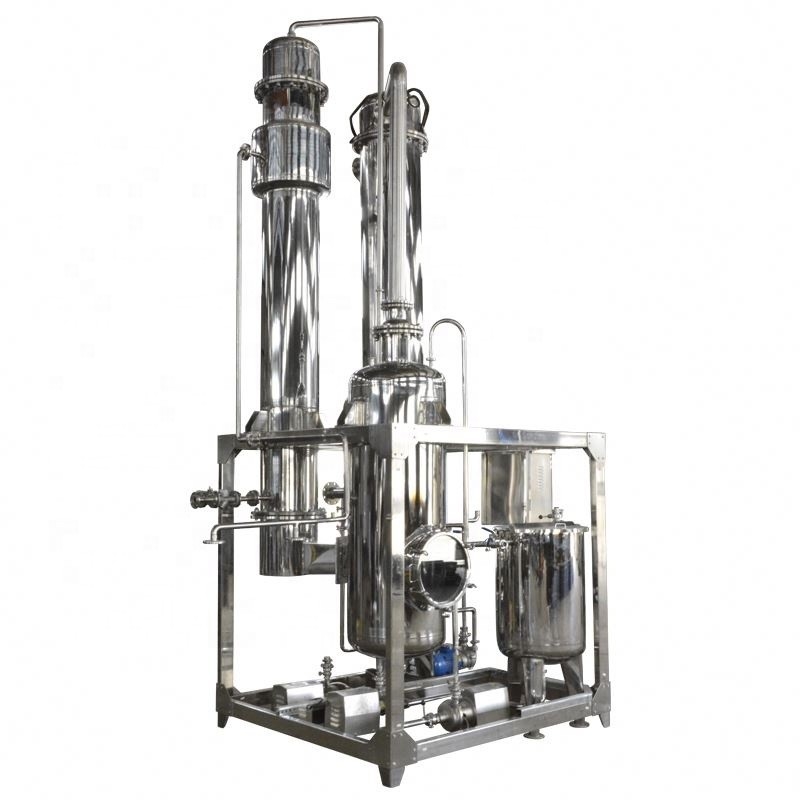

전기 스테인레스 강 5.6 kw 낙하 박막형 증발기

The single-effect falling film evaporator is widely used in food, dairy, chemical, pharmaceutical, biological engineering, environmental protection engineering and corn deep processing, such as for aqueous solutions, organic solvent solutions, fruit and vegetable juices, milk, eggs, vitamin C, collagen , Tea immersion liquid, sodium glutamate and other evaporative concentration. It is especially suitable for evaporative concentration of heat-sensitive materials, and the beneficial elements of the material can be protected to the greatest extent during the heating and evaporation process.

When a falling film evaporator is working, the materials are evenly distributed into each falling film pipe through the distributor, and flow down the wall of the pipe in the state of a liquid film. Under the action of gravity and the secondary steam flow, the materials get evaporated while flowing down. At the bottom of the falling film tube, the materials and secondary steam are basically separated, and they reach the separation chamber to achieve complete separation.

Features of a falling film evaporator

1. Low heating temperature
2. High evaporation speed
3. Short liquid residence time
4. Continuously feeding and discharging
5. Suitable for heat sensitive materials
6. Energy-saving

S01——Evaporation and separation chamber
E01——Tube heater                        E02——Tube condenser

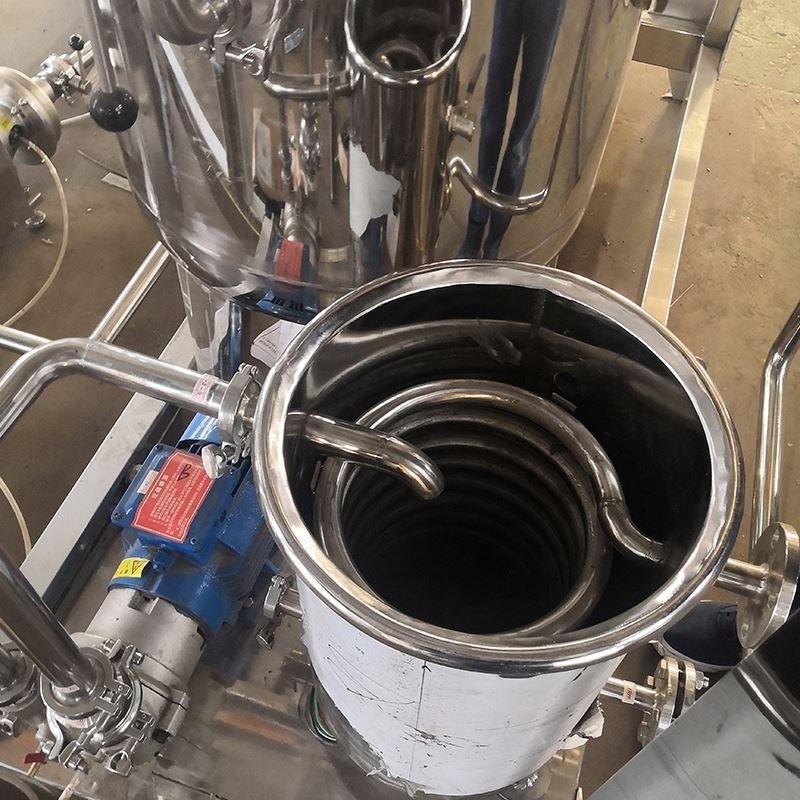

E03——Coil condenser                   E04——Vacuum pump cooler
V01——Middle tank                         V02——Ethanol collection tank
P01——Feeding pump                    P02——Concentrate discharge pump
P03——Discharge pump of ethanol       P04——Water ring vacuum pump

Working process of falling film evaporator

Feeding(V01) - evaporation(E01) - separation(S01) - condensation(E02) - cooling (E03) - storage tank (V02)

Pre-sale Service

1. Provide 24-hour technical consulting reply;
2. Provide professional quoted price;
3. Provide detailed product performance specification;
4. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
5. Provide other corollary equipment according to client requirements.

In-sale Service

1. Begin to supervise from raw material, its qualified rate can reach to 100%;
2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
3. Provide product’s inspection record of key junctures to customers;
4. Provide production schedule photos to customers at regular intervals;
5. Package and transport products strictly accordance with export standard;
6. Provide transportation schedule information to clients timely.

After-sale Service

1. Provide targeted installation video;
2. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
3. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
4. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
5. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification;
6. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information;
7. Provide assistant service if product is damaged during transportation.

1. Why is single-effect falling film evaporator commonly used for ethanol recovery?
Ethanol has low heat content and is volatile, so it is not suitable for multi-effect falling film evaporator.

2. What is the feed temperature of the single-effect falling film when recovering ethanol?
It is recommended to be above 20 °C, if the low temperature material liquid can add a preheating device before the cloth.

3. How much is the steam pressure in the heating chamber controlled?
The steam pressure is controlled within 0.2MPa, and the temperature is within 130 °C.
